XH20-120

Die Springs LEAD TIME
https://www.rbc-industrial.com/web/image/product.template/91137/image_1920?unique=aef4a6c

Extra Heavy Duty Die Spring - Green - 2 x 12

$ 121.89 121.89 USD $ 121.89

Not Available For Sale

  • Free Length (in) [Lo]
  • Brand
  • Housing Diameter (in) [D]
  • Rod Diameter (in) [d]
  • Rate (lbs/in) [R]
  • Stroke (in) for 30% Lo [S1]
  • Load (lbs) for 30% Lo [F1]
  • Stroke (in) for 40% Lo [S2]
  • Load (in) for 40% Lo [F2]
  • Smax
  • S3
  • F3
  • Unit Weight (lbs)

This combination does not exist.

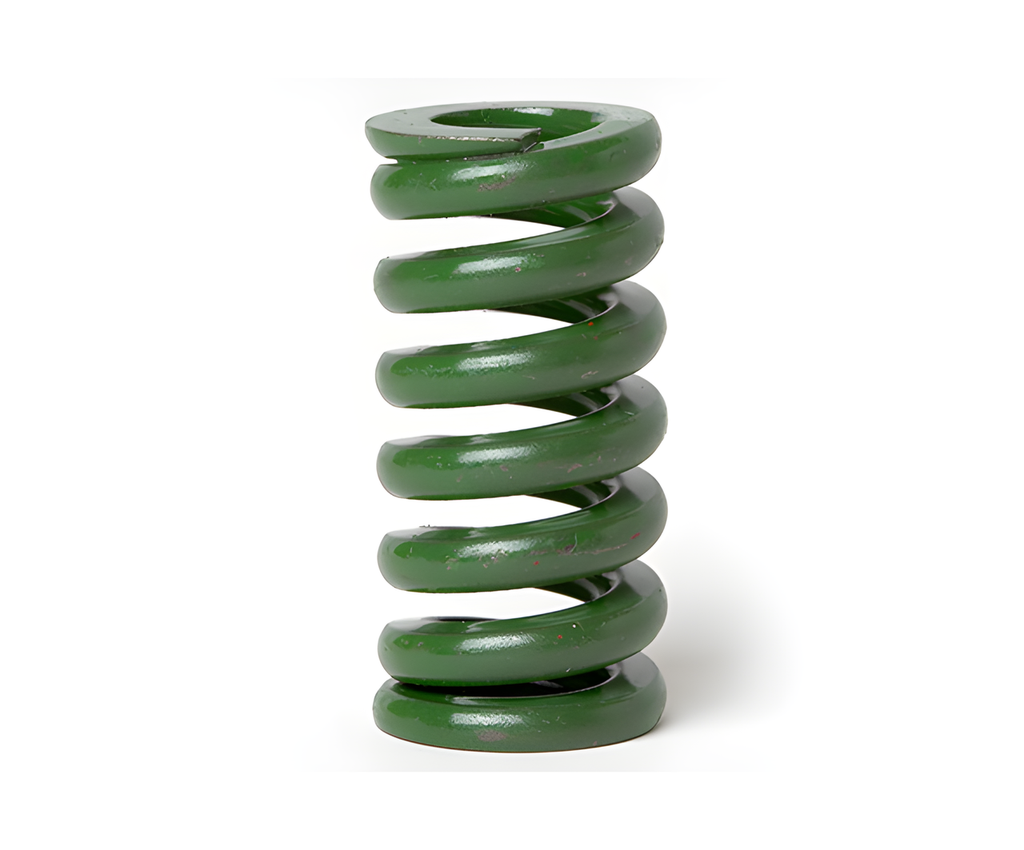

Raymond Green Extra Heavy Duty Die Spring — 2″ x 12″

Raymond® US Standard Inch Series die spring in the original Raymond trademark green color, extra heavy duty pressure rating. Built from high tensile strength chromium alloy steel with square, flat ends for a reliable, maximum load-carrying surface.

  • Part number: XH20-120
  • Size: 2″ x 12″ (hole diameter x free length)
  • Extra Heavy Duty rating — efficient operating range 15–20% of free length, maximum deflection 20%
  • High fatigue life — longer up-time between maintenance teardowns
  • Square ends provide a flat, maximum load-carrying surface

Raymond green die springs deliver higher force per inch of deflection than conventional compression springs, making them ideal for sheet metal forming, stamping dies, and press tool applications that must store and release energy cycle after cycle.

Order today from Tooling Components — extra heavy duty green die springs in stock with same-day quotes and fast shipping nationwide.

Contact Us
Request a Quote Call 915-845-8188
Free Length (in) [Lo]12
BrandRaymond, Bordignon Springs
Housing Diameter (in) [D]2
Rod Diameter (in) [d]1
Rate (lbs/in) [R]71.2
Stroke (in) for 30% Lo [S1]1.8
Load (lbs) for 30% Lo [F1]1281.6
Stroke (in) for 40% Lo [S2]2.04
Load (in) for 40% Lo [F2]1452.5
Smax3
S32.4
F31708.8
Unit Weight (lbs)4.10893

Brand-Agnostic Cross-Reference

RBC Industrial sources agnostically — our engineers verify interchangeability and quote the best available cross-reference for lead time and price.

Supplier diversity:SDVOSBTX HUB
Free Length (in) [Lo]: 12
Housing Diameter (in) [D]: 2
Rod Diameter (in) [d]: 1
Rate (lbs/in) [R]: 71.2
Stroke (in) for 30% Lo [S1]: 1.8
Load (lbs) for 30% Lo [F1]: 1281.6
Stroke (in) for 40% Lo [S2]: 2.04
Load (in) for 40% Lo [F2]: 1452.5
Smax: 3
S3: 2.4
F3: 1708.8
Unit Weight (lbs): 4.10893
