M05-015

Die Springs LEAD TIME
https://www.rbc-industrial.com/web/image/product.template/90769/image_1920?unique=0dd8f29

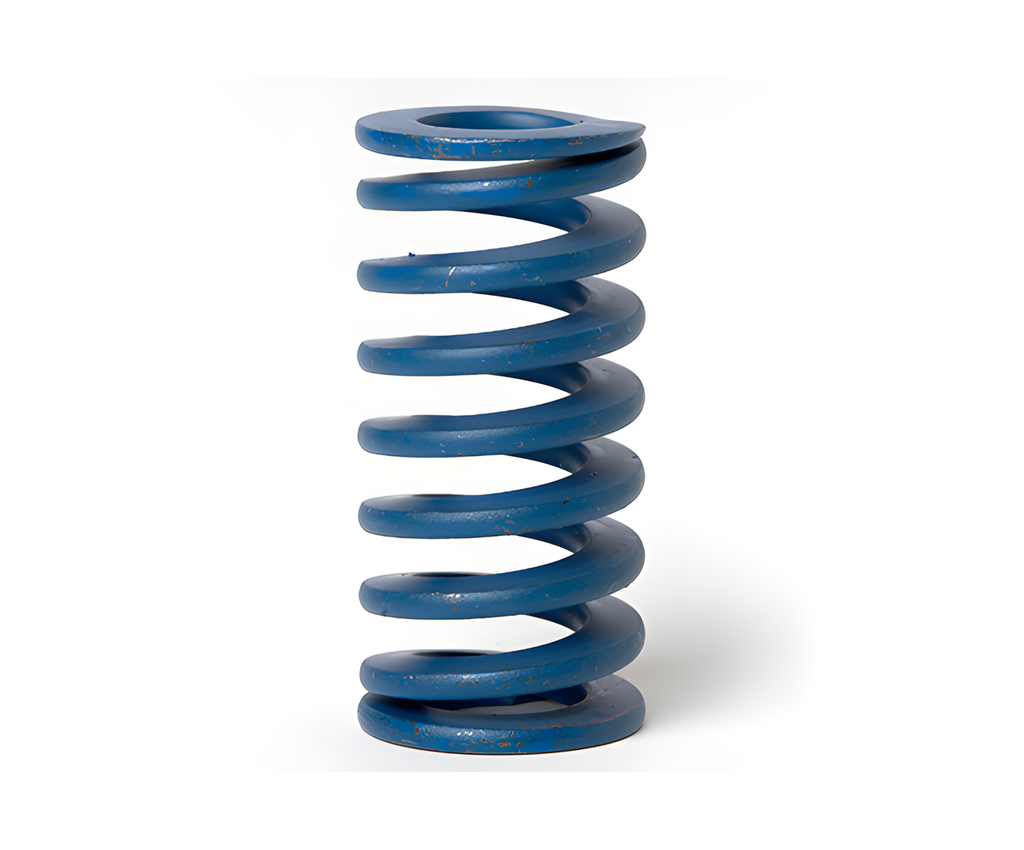

Medium Duty Die Spring - Blue - 1/2 x 1 1/2

$ 2.19 2.19 USD $ 2.19

Not Available For Sale

  • Free Length (in) [Lo]
  • Brand
  • Housing Diameter (in) [D]
  • Rod Diameter (in) [d]
  • Rate (lbs/in) [R]
  • Stroke (in) for 30% Lo [S1]
  • Load (lbs) for 30% Lo [F1]
  • Stroke (in) for 40% Lo [S2]
  • Load (in) for 40% Lo [F2]
  • Smax
  • S3
  • F3
  • Unit Weight (lbs)

This combination does not exist.

Raymond Blue Medium Duty Die Spring — 1/2″ x 1 1/2″

Raymond® US Standard Inch Series die spring in the original Raymond trademark blue color, medium duty pressure rating. Built from high tensile strength chromium alloy steel with square, flat ends for a reliable, maximum load-carrying surface.

  • Part number: M05-015
  • Size: 1/2″ x 1 1/2″ (hole diameter x free length)
  • Medium Duty rating — efficient operating range 25–40% of free length, maximum deflection 40%
  • High fatigue life — longer up-time between maintenance teardowns
  • Square ends provide a flat, maximum load-carrying surface

Raymond blue die springs deliver higher force per inch of deflection than conventional compression springs, making them ideal for sheet metal forming, stamping dies, and press tool applications that must store and release energy cycle after cycle.

Order today from Tooling Components — medium duty blue die springs in stock with same-day quotes and fast shipping nationwide.

Contact Us
Request a Quote Call 915-845-8188
Free Length (in) [Lo]1.5
BrandRaymond, Bordignon Springs
Housing Diameter (in) [D]1/2
Rod Diameter (in) [d]9/32
Rate (lbs/in) [R]6.8
Stroke (in) for 30% Lo [S1]0.38
Load (lbs) for 30% Lo [F1]25.5
Stroke (in) for 40% Lo [S2]0.53
Load (in) for 40% Lo [F2]35.7
Smax0.75
S30.6
F340.8
Unit Weight (lbs)0.01545

Brand-Agnostic Cross-Reference

RBC Industrial sources agnostically — our engineers verify interchangeability and quote the best available cross-reference for lead time and price.

Supplier diversity:SDVOSBTX HUB
Free Length (in) [Lo]: 1.5
Housing Diameter (in) [D]: 1/2
Rod Diameter (in) [d]: 9/32
Rate (lbs/in) [R]: 6.8
Stroke (in) for 30% Lo [S1]: 0.38
Load (lbs) for 30% Lo [F1]: 25.5
Stroke (in) for 40% Lo [S2]: 0.53
Load (in) for 40% Lo [F2]: 35.7
Smax: 0.75
S3: 0.6
F3: 40.8
Unit Weight (lbs): 0.01545
