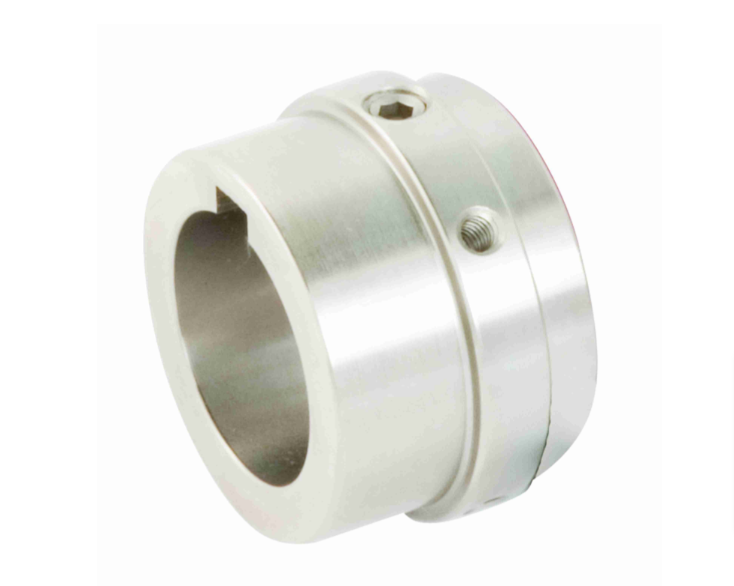

10 HSB x 7/8 Omega
10 HSB, .875 B 3/16 X 3/32 KW 1SS, 7385821, 10287552
| Series | Hubs |
|---|---|
| Product | Omega Hubs |
| Coupling Size | 10 |
| Coupling Type | Elastomeric |
| Hub Barrel Outside Diameter (in) | 3.3 |
| Hub Length (in) | 1.88 |
| Hub Style | Standard Bore (HSB) |
| Hub Material | Steel |
| Hub Bore Fit | Clearance |
| Hub Shoulder Diameter (in) | 3.65 |
| Hub Straight Bore Diameter [Max] (in) | 0.876 |
| Hub Straight Bore Diameter [Min] (in) | 0.875 |
| Number of Keyways | 1 |
| Number of Set Screws | 1 |
| Hub Straight Bore Diameter [Nom] (in) | 0.875 |
| Keyway Depth (in) | 0.0938 |
| Keyway Width (in) | 0.1875 |
Brand-Agnostic Cross-Reference
RBC Industrial sources agnostically — our engineers verify interchangeability and quote the best available cross-reference for lead time and price.
Supplier diversity:SDVOSBTX HUB
| Series: Hubs |
| Product: Omega Hubs |
| Coupling Size: 10 |
| Coupling Type: Elastomeric |
| Hub Barrel Outside Diameter (in): 3.3 |
| Hub Length (in): 1.88 |
| Hub Style: Standard Bore (HSB) |
| Hub Material: Steel |
| Hub Bore Fit: Clearance |
| Hub Shoulder Diameter (in): 3.65 |
| Hub Straight Bore Diameter [Max] (in): 0.876 |
| Hub Straight Bore Diameter [Min] (in): 0.875 |
| Number of Keyways: 1 |
| Number of Set Screws: 1 |
| Hub Straight Bore Diameter [Nom] (in): 0.875 |
| Keyway Depth (in): 0.0938 |
| Keyway Width (in): 0.1875 |
