Gearbox Replacement: How to Verify Shaft and Coupling Fit Before You Order

A case study in mechanical troubleshooting

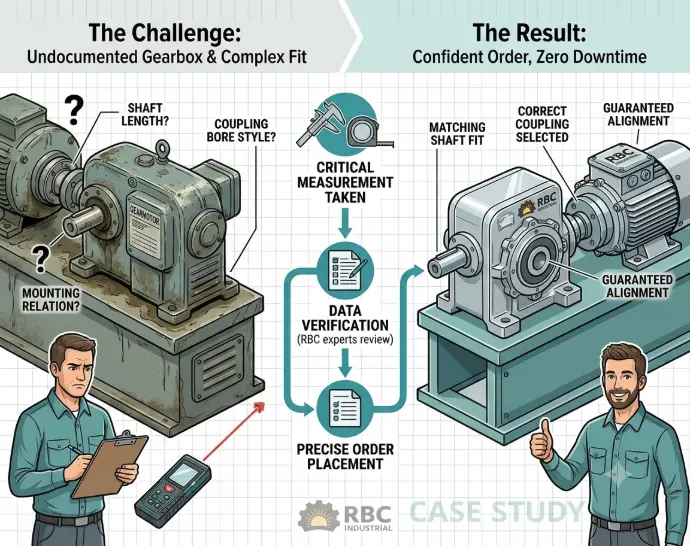

The Challenge

A customer needed to replace a gearmotor/gearbox, but the shaft length, coupling position, and mounting relationship were undocumented. Without the correct centerline-to-shaft-end dimension, any replacement was a gamble. Wrong fit meant weeks of additional downtime waiting for a corrected order.

How RBC Industrial Helped

RBC Industrial guided the customer through measuring the centerpoint of the existing gearbox and duplicating the shaft projection. Identified the correct coupling style — including sleeve, flanges, bore size, and keyway requirements — to ensure the new unit would mate correctly with the driven equipment.

The Result

Clear technical direction eliminated fitment risk entirely. The customer ordered a replacement with confidence instead of hoping "close enough" would work.

Before you order a replacement gearbox: let us review your measurements first. One wrong dimension costs weeks.
