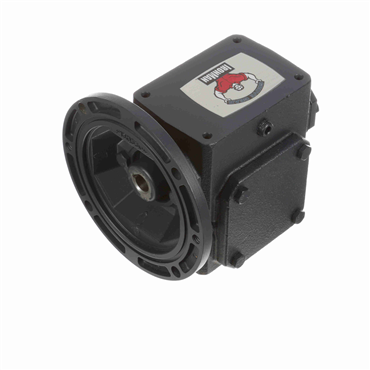

GR-BMQ818-15-R-56 Grove Gear
GR8180124.00 GR SERIES - IRONMAN WORM GEAR REDUCERS CAST IRON SINGLE-REDUCTION WORM REDUCER
| Series | GR Series - Ironman Worm Gear Reducers |
|---|---|
| Product Type | Worm Speed Reducer |
| Housing Material | Cast Iron |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Gear Type | Worm |
| Input Style | C-Face Quill |
| Output Torque Rating (in-lb) | 571 |
| Ratio | 15:1 |
| Ratio Range | 15:1 |
| Output Shaft | Solid Shaft |
| Output Diameter (in) | 0.875 |
| Output RPM | 116 |
| Service Factor | 1 |
| Series Code | GR |
| HP Range | 1 to 1-1/2 (< 2) |
| Mounting Style | Base |
| Output Torque Range | 500 to 1000 in lbs |
| Center Distance (in) | 1.75 1.75 |
| Output Shaft Direction | Right |
| Reduction | Single |
| Input RPM | 1750 |
| Input Diameter (in) | 0.625 |
| Center Distance Range | 1" thru 3.25" |
| No. of Gear Reductions | Single |
| Assembly | BMQ-R |
| Output Key | 3/16 X 1.38 |
| Output Shaft Assembly Code | R |
| Reducer | Worm - Right Angle |
| Model Code | BMQ818 |
| Shaft Seal Material | Viton |
| Input HP | 1.224 |
| Motor Frame Size | 56C |
| Input HP @ 1750 RPM | 1.224 |
| Output HP | 1.058 |
| Reducer Style | Worm - Right Angle |
| Input Bore (C Face) | 0.625 |
| Input Keyway (C Face) | 3/16 x 3/32 |
| Output Style | R |
| Thrust Rating - output shaft | 1144 |
| Overhung Load Rating (Output Shaft(lb)) | 1200 |
| Output Shaft Orientation | R |
| Series Style | GR-BMQ-R |
| Frame Size | 56C |
| Keyway | 3/16 X 3/32 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Input Quill Diameter (in) | 0.625 |
| Overhung Load | 1200 |
| TAP Depth | 0.63 |
| H-Tap size | 5/16-18 UNC |
